Arrow Tight Waterproofing doesn't sell one-size-fits-all waterproofing packages. We diagnose the entry point, the pressure source, and the existing drainage condition — then we build the solution around what your specific property needs.
💧
Interior Drain Tile & Perimeter Channel Systems
When hydrostatic pressure is the primary culprit, the most effective long-term solution is a properly engineered interior drainage system. We install sub-slab perforated drain tile around the perimeter of your basement — capturing water before it can rise above slab level — and route it to a sump pit equipped with a dual-pump configuration.
These systems don't fight hydrostatic pressure — they redirect it.
📞 Get a Free Drainage Quote →
🏗️
Exterior Foundation Waterproofing & Membrane Application

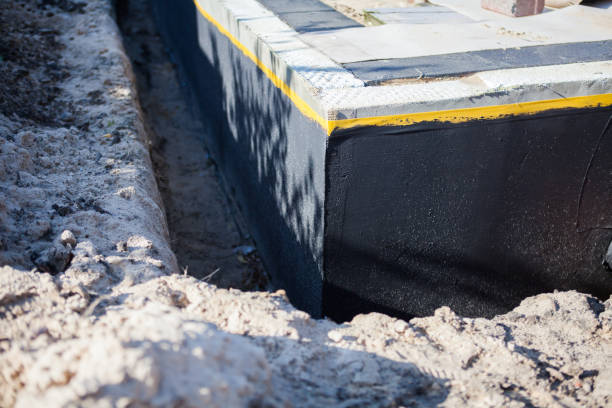

Full exterior waterproofing involves exposing your foundation to the footer depth, applying a crystalline or elastomeric waterproofing membrane, installing a geocomposite drainage mat, and placing exterior drain tile at the footing — the same specification used in new commercial construction.
This approach solves the problem at the source: water never reaches your interior wall surface.
📞 Schedule an Exterior Assessment →
🔧
Foundation Crack Injection — Polyurethane & Epoxy Systems
Poured concrete foundation cracks are repaired from the interior using high-pressure polyurethane or epoxy injection — the appropriate chemistry depends on whether the crack is actively leaking or dry. Polyurethane foam expands into wet, actively leaking cracks and cures flexible, accommodating minor future movement. Epoxy injection is used in dry cracks where structural bond restoration is the goal.
For concrete block foundation walls showing horizontal cracking or inward bowing, we pair crack repair with carbon fiber reinforcement straps anchored at the floor and rim joist.
📞 Get a Crack Injection Estimate →
🌿
Full Crawl Space Waterproofing & Drainage Installation
We install a minimum 20-mil reinforced poly vapor barrier over the entire crawl space floor and seal it up the walls to the sill plate — then seal all vents, install a conditioned air supply or dedicated crawl space dehumidifier, and spec a sump system if groundwater is present.
For crawl spaces with active water entry, we install a perimeter drain channel at the footer line, route it to an appropriate discharge point or sump.
📞 Schedule a Crawl Space Inspection →
⚙️
Primary & Backup Sump Pump Systems for Northfield Homes
The sump pit itself matters as much as the pump. We construct 18-inch diameter pits with a gravel bed at the base for proper water collection, sealed lids to prevent vapor and radon entry, and a discharge line that terminates a minimum of 10 feet from the foundation at a positive-grade daylight point.
Sump pump replacement is one of the most time-sensitive repairs in waterproofing — a failed pump during a heavy rain event means an immediate flood.
📞 Get a Sump System Quote →
🪟
Basement Window Well Repair & Drainage Installation
Basement window wells are one of the most underestimated water entry points in residential waterproofing. When the well drain becomes clogged or the well itself is sized incorrectly for your roof drainage load, water pools against the window frame and enters through the sill, the window-to-frame joint, or the block wall directly adjacent.
Window well covers are a maintenance measure, not a waterproofing solution — but paired with proper drainage installation.
📞 Book a Window Well Assessment →
